Vacuum and sewage collection

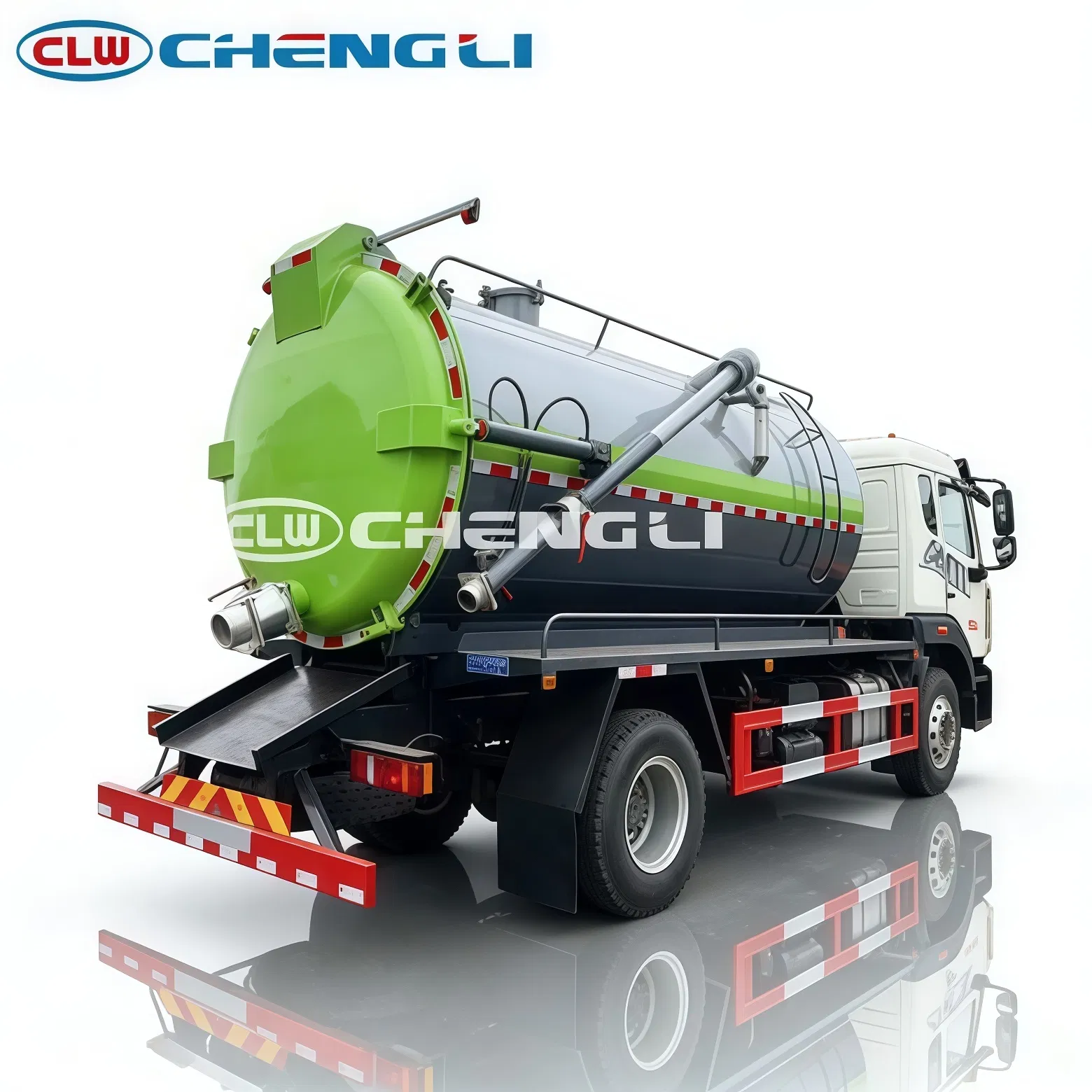

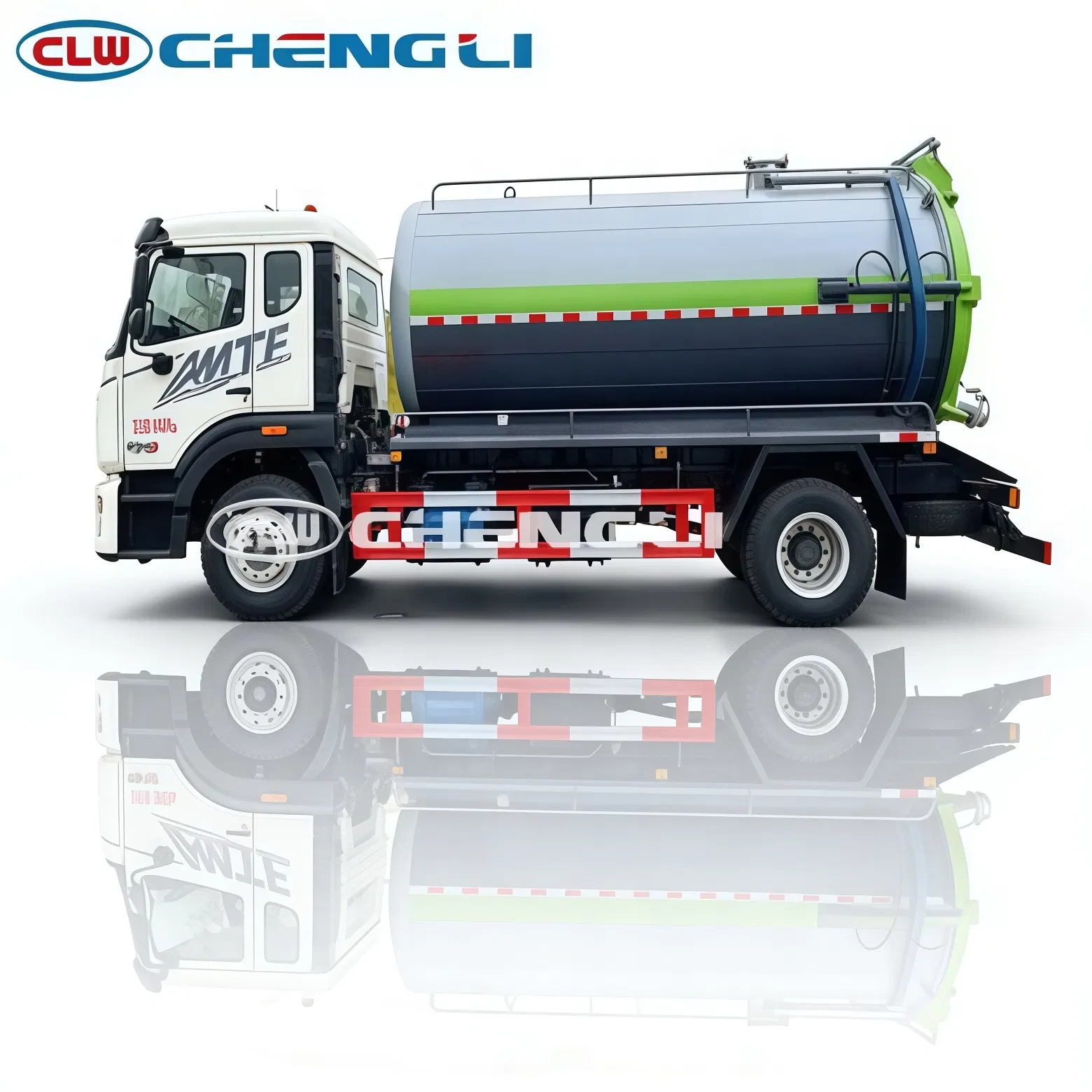

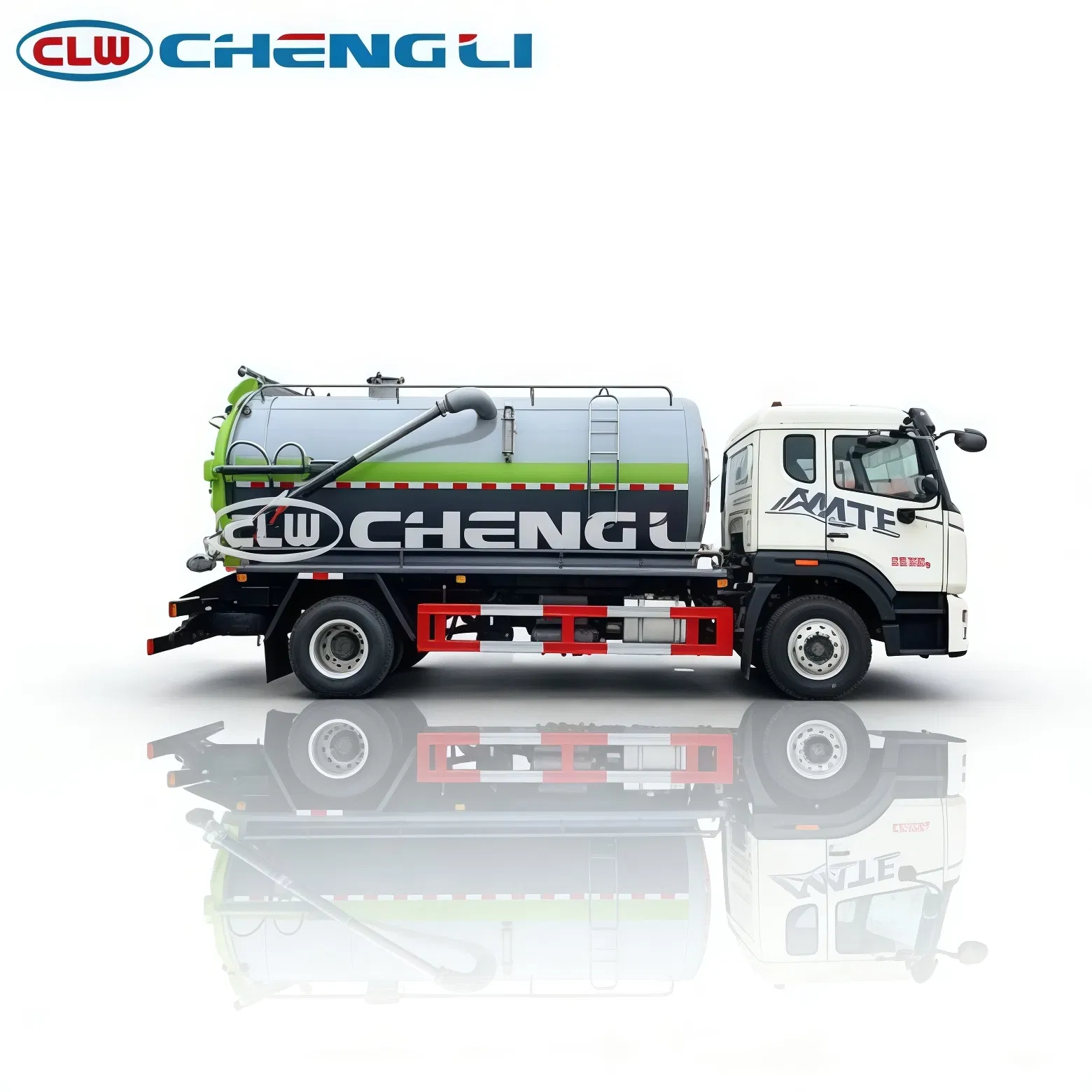

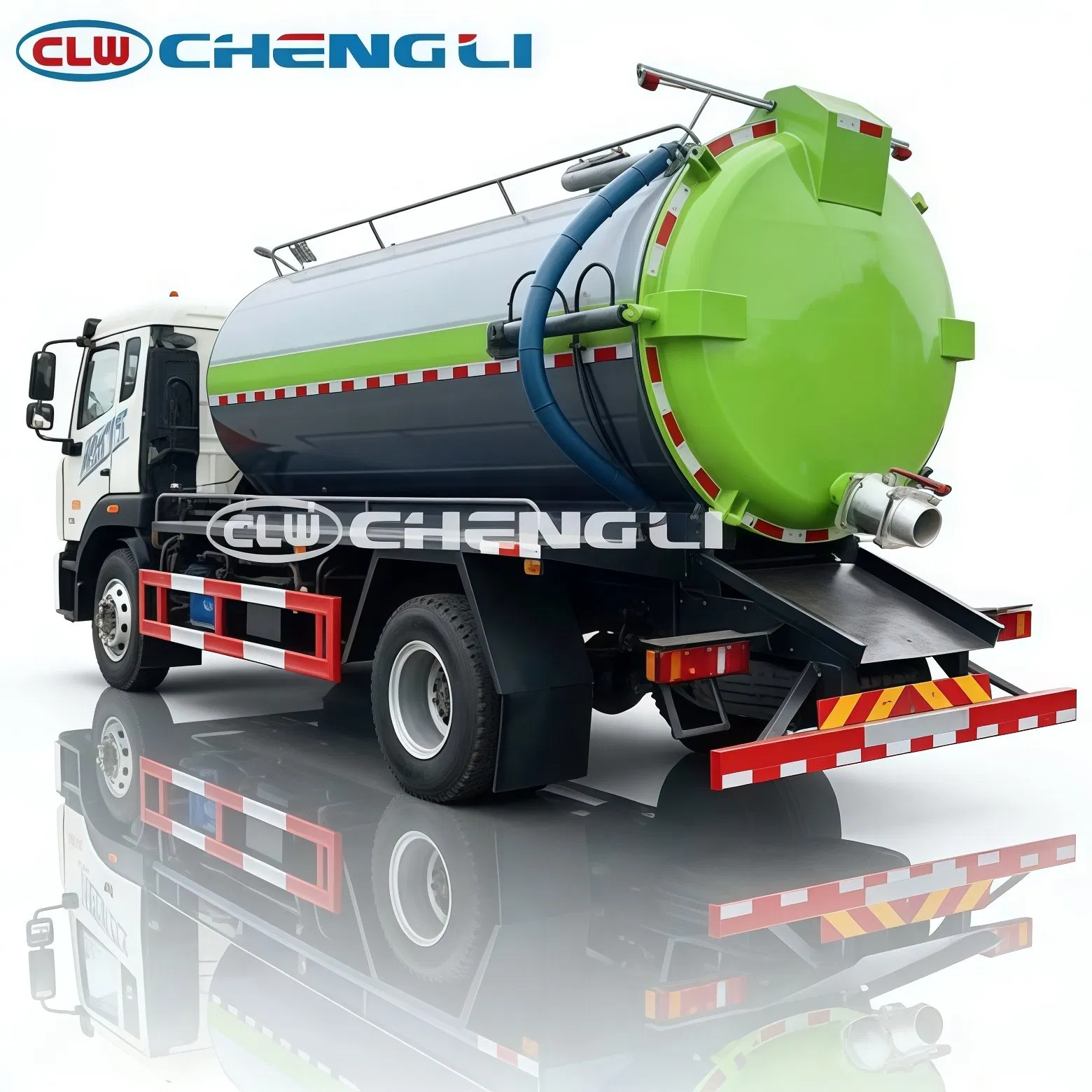

13,800L 4×2 Vacuum Truck
A 13,800L HOWO 4×2 vacuum truck for comparing larger collection rounds without choosing the three-axle reference.
- Nominal capacity
- 13,800 L
- Drive layout
- 4×2
THE APPLICATION
13,800L 4×2 Vacuum Truck
The reference tank uses Q235 carbon steel with an 8 mm plate thickness and a 2BE204 vacuum pump. Discuss the pump duty against the hose reach and collection depth required by this larger tank. The HOWO chassis has an 18,000 kg reference gross vehicle weight.
CONFIGURE THE WORKING EQUIPMENT
Configuration
Fleet comparison
The 13,800L nominal tank is 7,800L larger than the 6,000L reference. Consider it where a round combines several sizeable collection points and access permits a larger tanker. Compare the collected material and disposal distance before allocating that storage to a daily assignment.
Vehicle layout
Reference dimensions are 8,250 × 2,530 × 3,450 mm, with a 4,700 mm wheelbase. Its two-axle footprint is shorter than the 10,550 mm three-axle HOWO reference. Use the height and length to compare covered collection points and reversing at disposal.
THE DATASHEETProduct specificationsExpand all groupsCollapse specifications
Dimensions and equipment describe the reference configuration. The final quotation identifies the supplied chassis, body and working equipment.
Model & dimensions
| Chassis brand | HOWO |
|---|---|
| Length × width × height | 8250 × 2530 × 3450 mm |
| Gross vehicle weight | 18,000 kg |
Chassis & powertrain
| Fuel | Diesel |
|---|---|
| Transmission | Manual |
| Wheelbase | 4700 mm |
Body & capacity
| Nominal body volume | 13,800 L |
|---|---|
| Tank / body material | Q235 carbon steel |
| Tank plate thickness | 8 mm |
Working system
| Vacuum pump reference | 2BE204 |
|---|---|
| Tank monitoring / protection | Pressure gauge, sight glass and anti-overflow valve |
BEFORE YOUR ENQUIRY
Buyer questions
Why compare this 13,800L model with the 6×4 reference?
This tanker retains a two-axle 4×2 layout and an 8,250 mm reference length. The three-axle HOWO vehicle is 10,550 mm long, so disposal-yard positioning differs.
What identifies the reference tank and pump?
Q235 carbon steel, 8 mm plate thickness and a 2BE204 pump identify the listed working configuration. Request the pump duty data for the hose reach needed on your collection round.
Which measurements matter at a covered pit?
Compare 2,530 mm width and 3,450 mm height with the collection-point entrance. The 4,700 mm wheelbase and 8,250 mm length also belong in the positioning discussion.
YOUR NEXT CONFIGURATION
Discuss your configuration
Request an itemized quote for the 13,800l 4×2 vacuum truck, its selected chassis and suction and hose package.
