Rear-loader waste collection

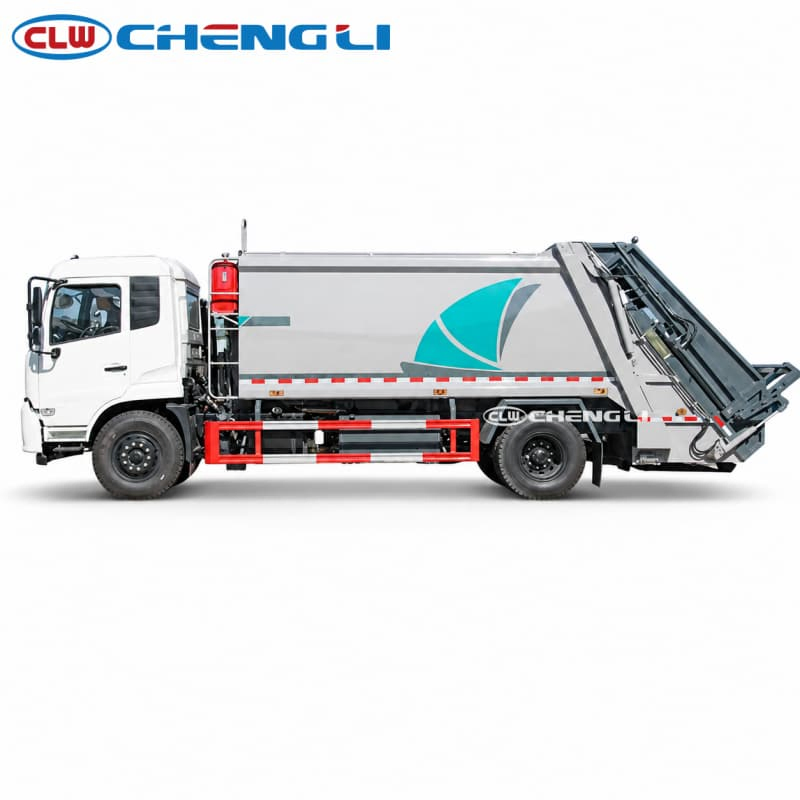

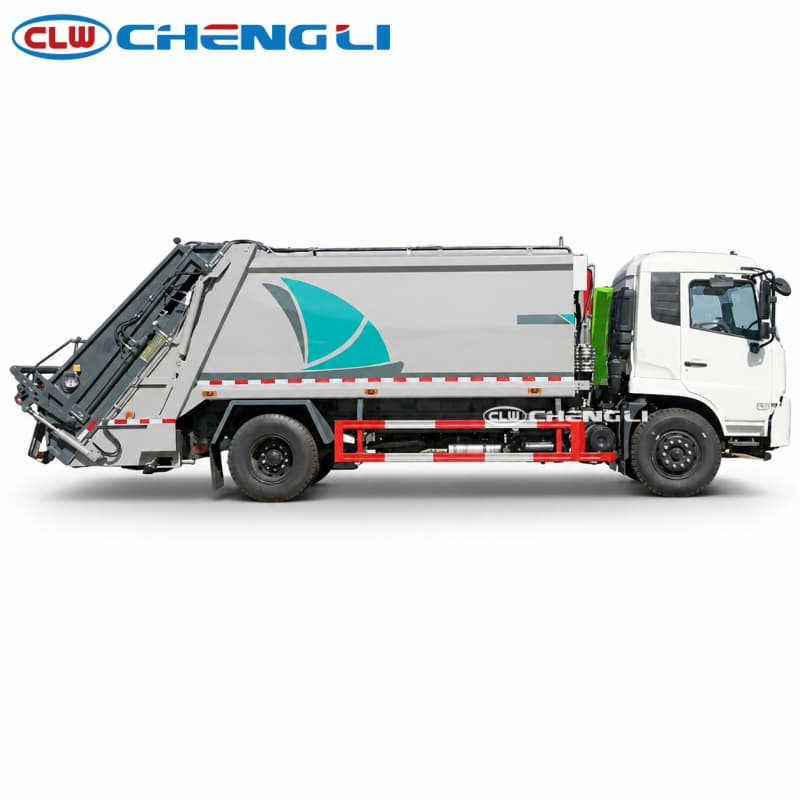

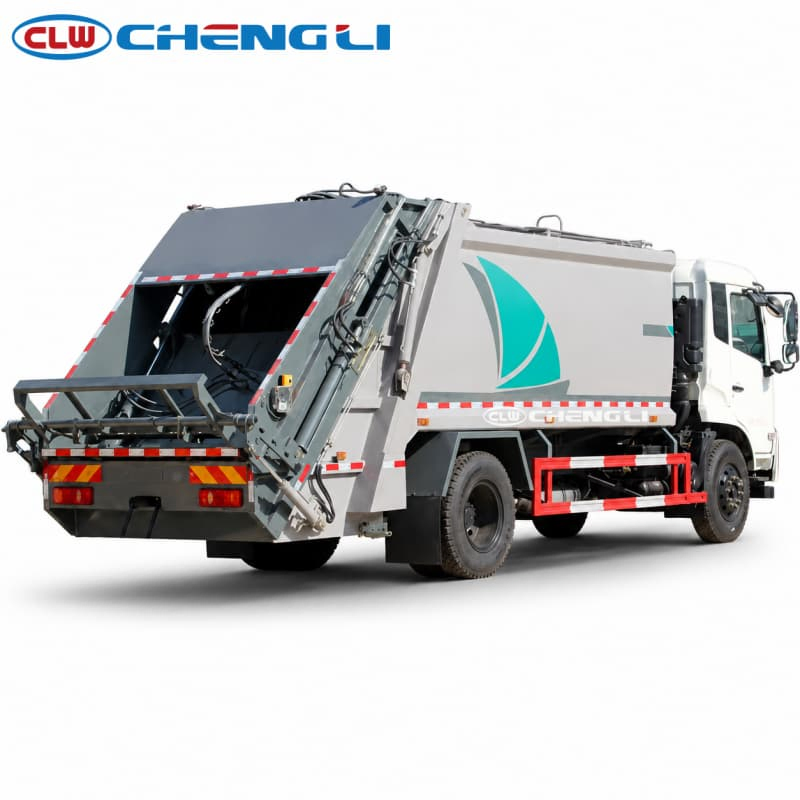

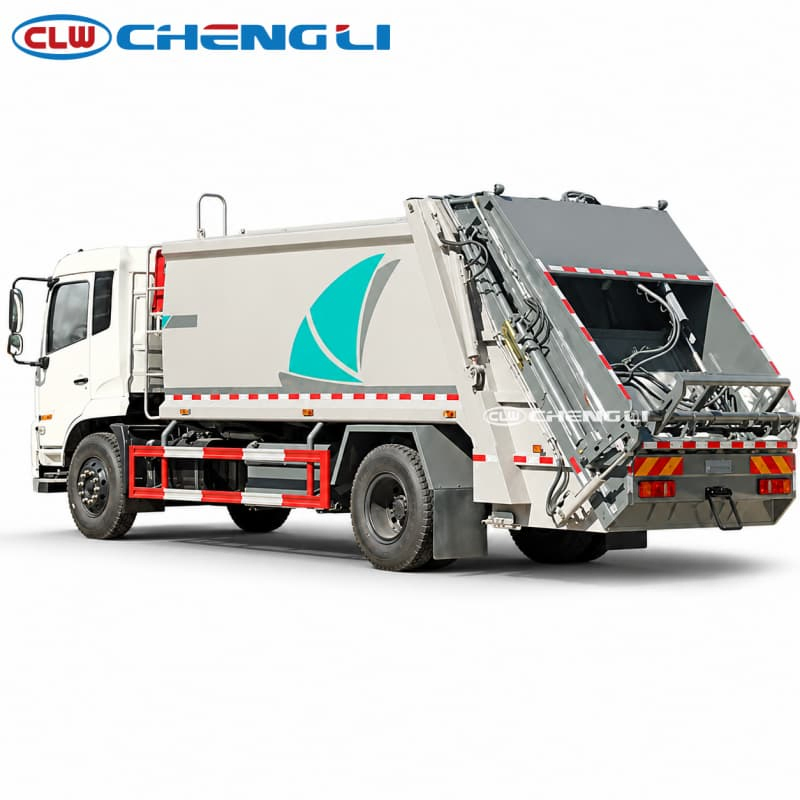

14m³ Municipal Garbage Compactor Truck
A 14m³ Dongfeng 4×2 garbage compactor truck for comparing municipal collection rounds against the smaller feeder classes.
- Nominal capacity
- 14 m³
- Drive layout
- 4×2
- Reference model
- DF VR 14
THE APPLICATION
14m³ Municipal Garbage Compactor Truck
The Dongfeng chassis has an 18,000 kg reference gross vehicle weight and a two-axle 4×2 layout. Discuss the rear-loading interface and disposal-site layout for the collection assignment you plan to give this municipal truck.
Shared selection and loading notes.
Compare with the 5m³ Foton garbage compactor truck when assessing a feeder-vehicle role.
CONFIGURE THE WORKING EQUIPMENT
Configuration
Fleet comparison
The 14m³ body provides nominal storage for a round that consolidates waste from several collection points before returning to a disposal facility. Assess the volume collected between unloading stops and the work assigned to this vehicle. The return interval depends on the refuse collected at each stop. For a smaller feeder role, compare the 5m³ Foton configuration against collection volume and the return schedule, without treating body volume as payload.
Vehicle layout
Reference dimensions are 9,600 × 2,550 × 3,200 mm and the wheelbase is 4,700 mm. The 9,600 mm vehicle length is a planning input for the approach to a reversing area. Check the entry layout and the rear unloading position before assigning the truck to an existing route.
THE DATASHEETProduct specificationsExpand all groupsCollapse specifications
Dimensions and equipment describe the reference configuration. The final quotation identifies the supplied chassis, body and working equipment.
Model & dimensions
| Reference model | DF VR 14 |
|---|---|
| Chassis brand | Dongfeng |
| Length × width × height | 9600 × 2550 × 3200 mm |
| Gross vehicle weight | 18,000 kg |
Chassis & powertrain
| Fuel | Diesel |
|---|---|
| Transmission | Manual |
| Wheelbase | 4700 mm |
Body & capacity
| Nominal body volume | 14 m³ |
|---|
Working system
| Body function | Rear loading and compaction |
|---|
BEFORE YOUR ENQUIRY
Buyer questions
How should the 14m³ body be considered for a collection round?
Use its nominal storage to compare the waste collected between returns to the disposal facility. For this 9,600 mm vehicle, assess the unloading interval together with access to each collection point.
Which reference dimensions affect yard positioning?
Length is 9,600 mm, width 2,550 mm and height 3,200 mm, with a 4,700 mm wheelbase. Use those figures to compare the entry, reversing position and rear unloading area.
Which loading and unloading details should be specified for this rear-loader?
Describe the bin interface, reversing area and rear unloading position for the working equipment selected in the quotation. Include the disposal-site layout when discussing this two-axle Dongfeng configuration.
