Vacuum and sewage collection

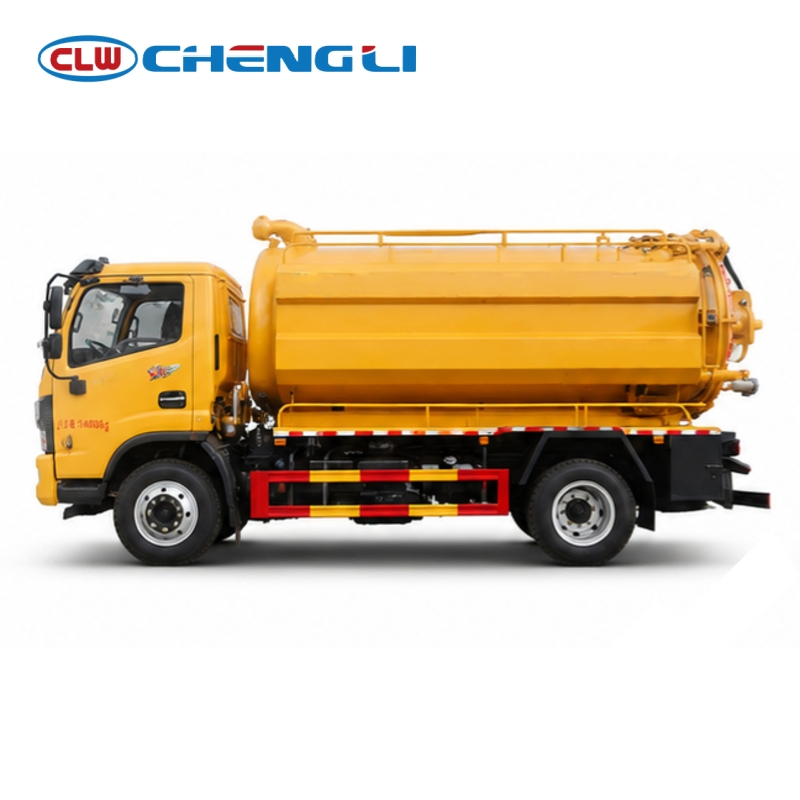

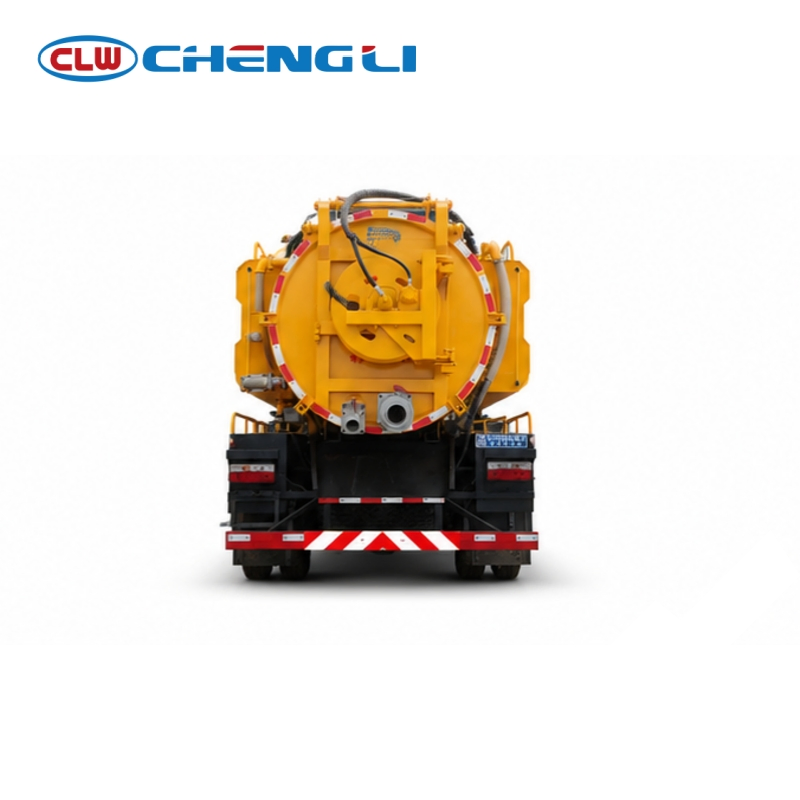

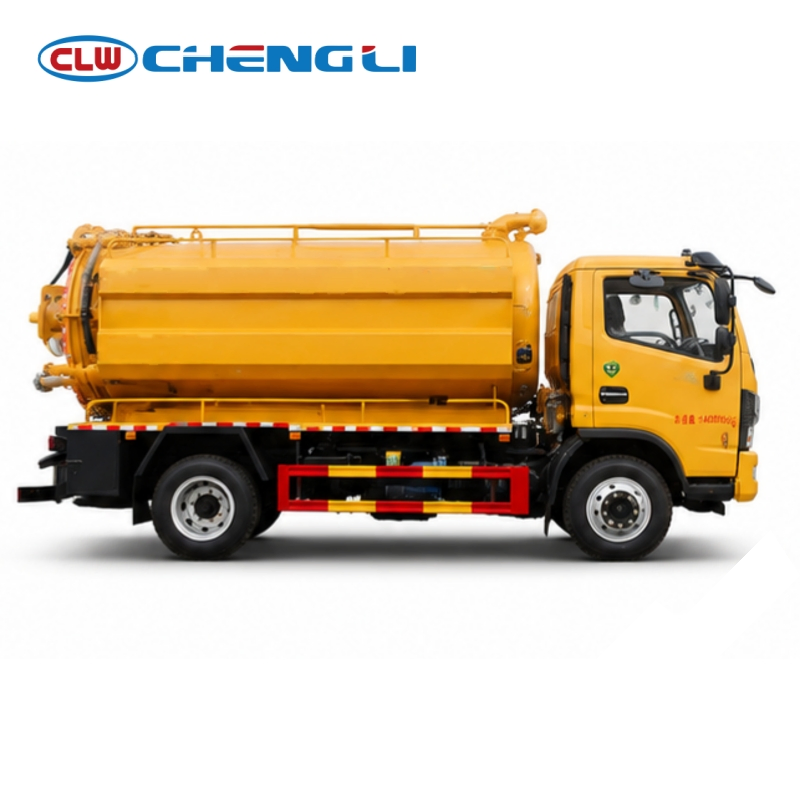

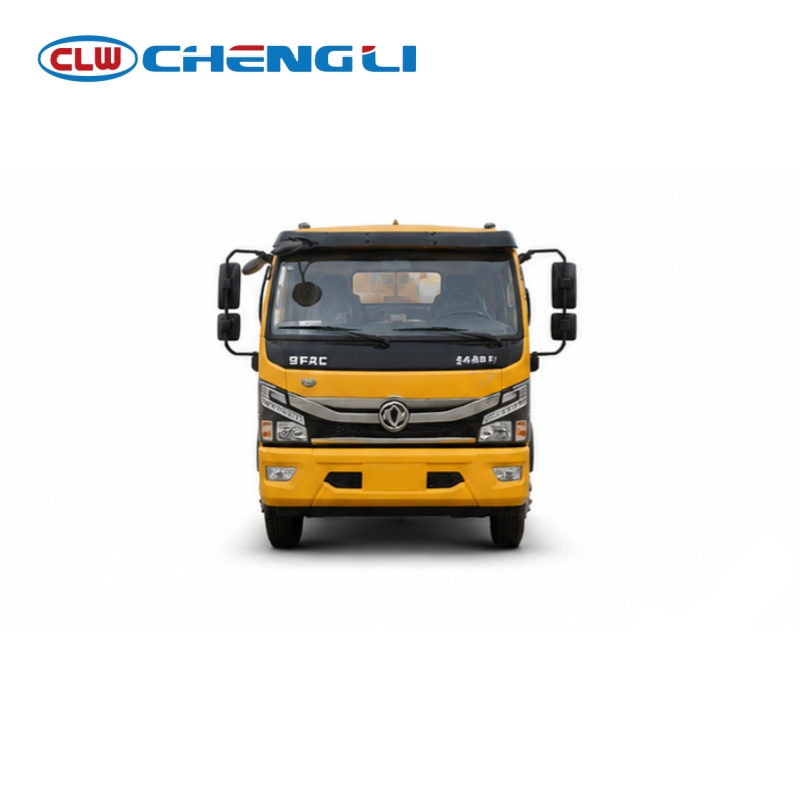

4×2 Combination Vacuum Truck
A Dongfeng combination vacuum truck with separate 8,000L sewage and 4,000L water compartments for collection and pipe-cleaning jobs.
- Drive layout
- 4×2
THE APPLICATION
4×2 Combination Vacuum Truck
This Dongfeng reference measures 7,200 × 2,360 × 3,150 mm and has a 3,800 mm wheelbase. Its gross vehicle weight is 14,080 kg, so compare the working load at each stage rather than adding compartment volumes. Evaluate access with the space needed for both suction and high-pressure hose deployment.
CONFIGURE THE WORKING EQUIPMENT
Configuration
Fleet comparison
The working arrangement combines vacuum collection and high-pressure water cleaning on one 4×2 vehicle. Evaluate it when the same stop requires both removal of collected material and pipe cleaning. A collection-only tanker provides a different equipment comparison from this two-function truck.
Vehicle layout
The 8,000L sewage compartment and 4,000L water compartment have different jobs during the working cycle. Plan the water used for jetting separately from material returned to the sewage compartment. Ask for the hose reel and pump arrangement for the sequence of work at your cleaning stops.
THE DATASHEETProduct specificationsExpand all groupsCollapse specifications
Dimensions and equipment describe the reference configuration. The final quotation identifies the supplied chassis, body and working equipment.
Model & dimensions
| Chassis brand | Dongfeng |
|---|---|
| Length × width × height | 7200 × 2360 × 3150 mm |
| Gross vehicle weight | 14,080 kg |
Chassis & powertrain
| Fuel | Diesel |
|---|---|
| Transmission | Manual |
| Wheelbase | 3800 mm |
Body & capacity
| Sewage compartment | 8000 L |
|---|---|
| Water tank | 4000 L |
Working system
| Working equipment | Vacuum pump and high-pressure water pump |
|---|
BEFORE YOUR ENQUIRY
Buyer questions
Why choose a combination truck over collection only?
The reference puts a vacuum pump and a high-pressure water pump on the same vehicle. Compare that arrangement for jobs requiring pipe cleaning as well as material collection at one stop.
How are the two compartments used?
The 8,000L compartment receives sewage, while the separate 4,000L compartment provides water for the cleaning task. Discuss water consumption and collected material as different parts of the working cycle.
Which dimensions define this two-function vehicle?
The reference measures 7,200 × 2,360 × 3,150 mm, with a 3,800 mm wheelbase. Include space for both hose systems when comparing the cleaning-point layout.
YOUR NEXT CONFIGURATION
Discuss your configuration
Request an itemized quote for the 4×2 combination vacuum truck, its selected chassis and suction and hose package.
