Water transfer and road-spray planning
5,000L Water Tank Truck
A 5,000L CLW5070GPSD6 water tank truck for comparing short spray sections and frequent refills with the 9,000L option.
- Nominal capacity
- 5,000 L
- Drive layout
- 4×2
- Reference model
- CLW5070GPSD6
THE APPLICATION
5,000L Water Tank Truck

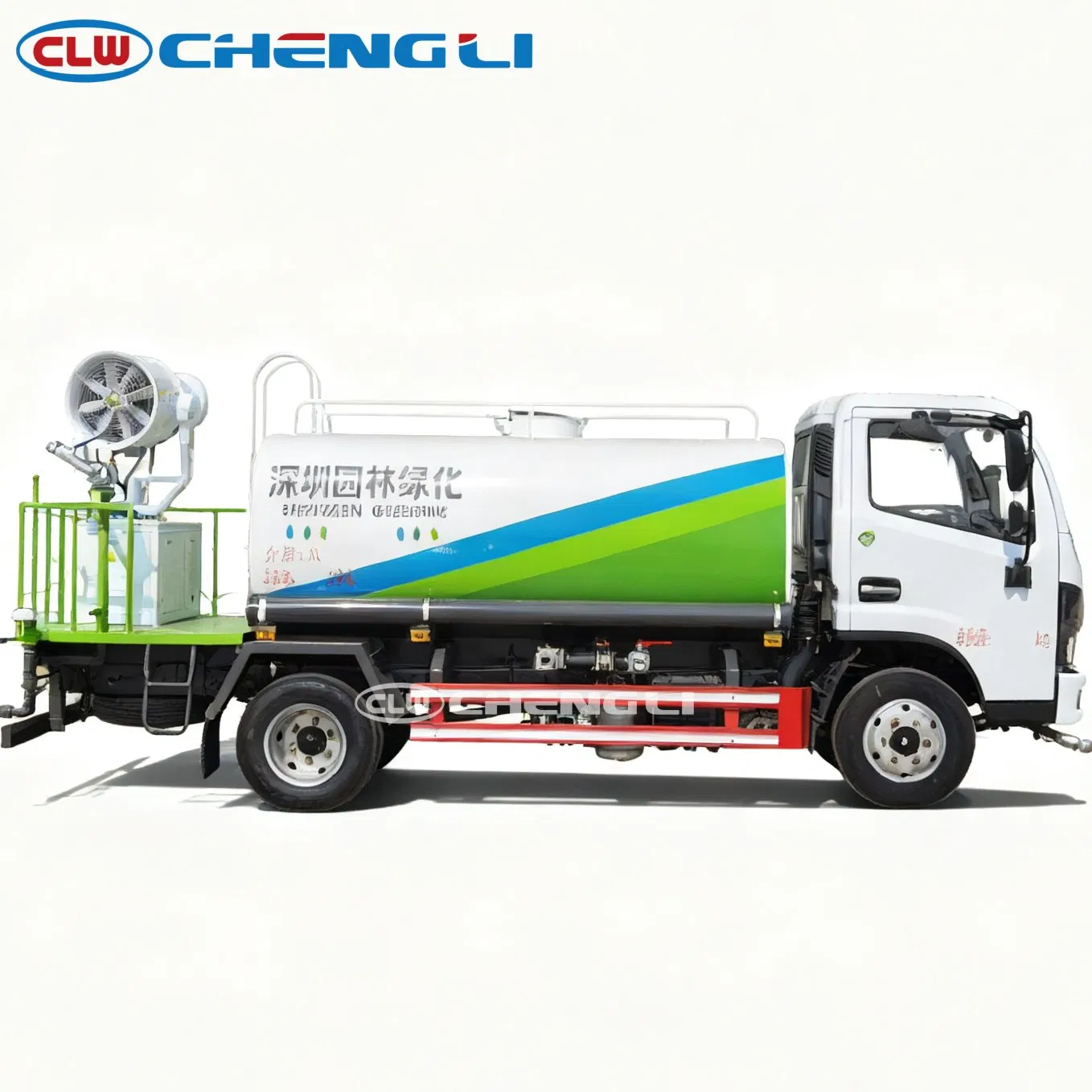

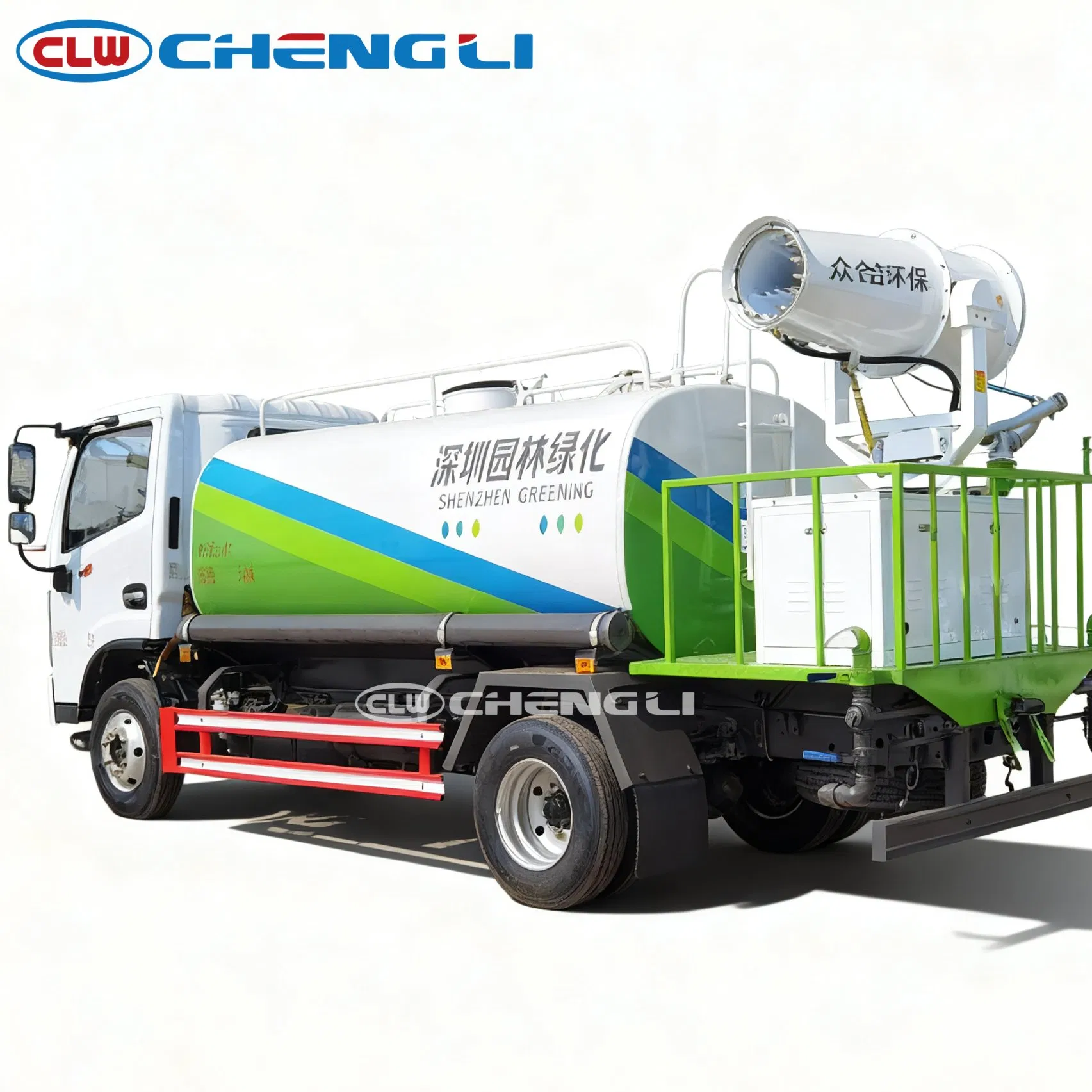

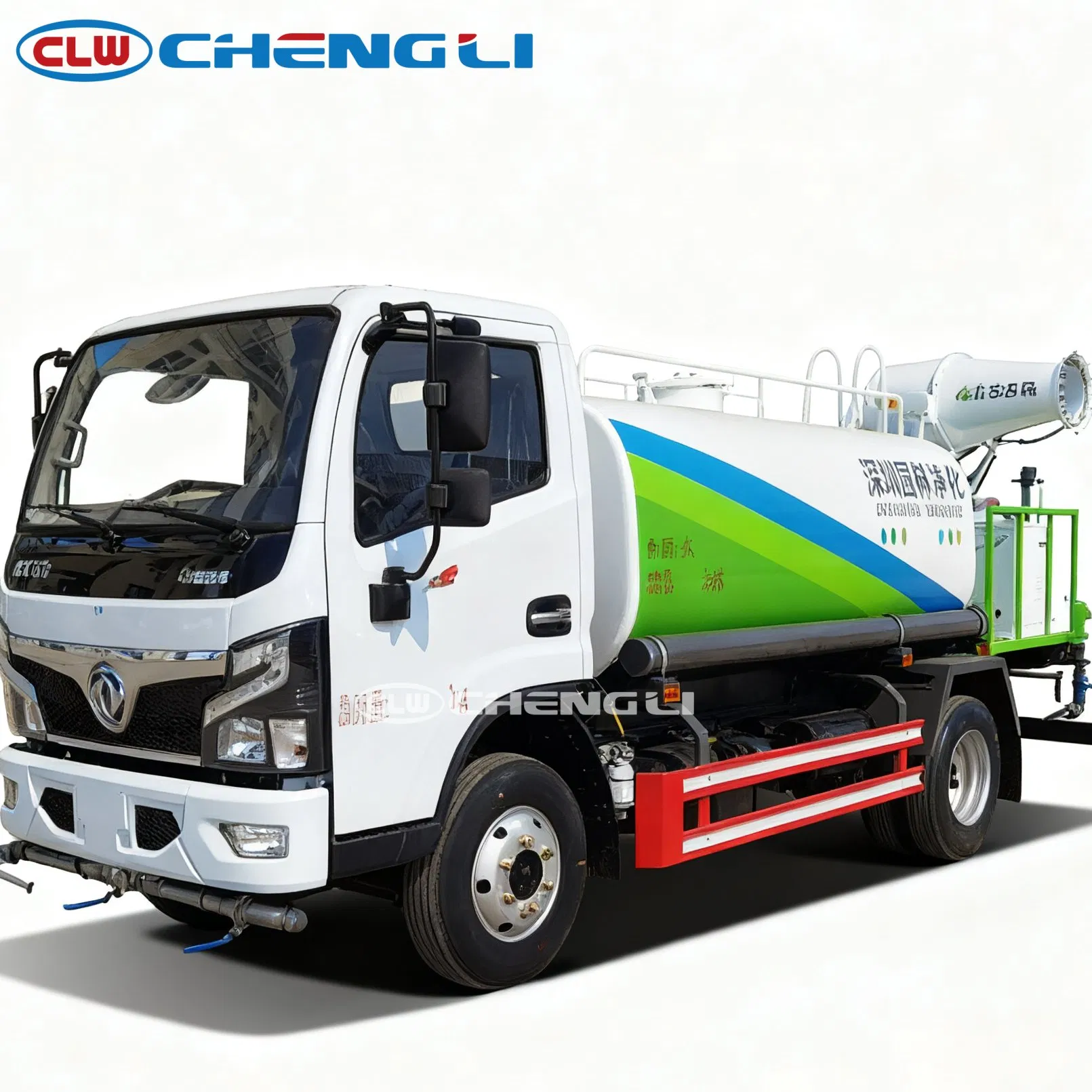

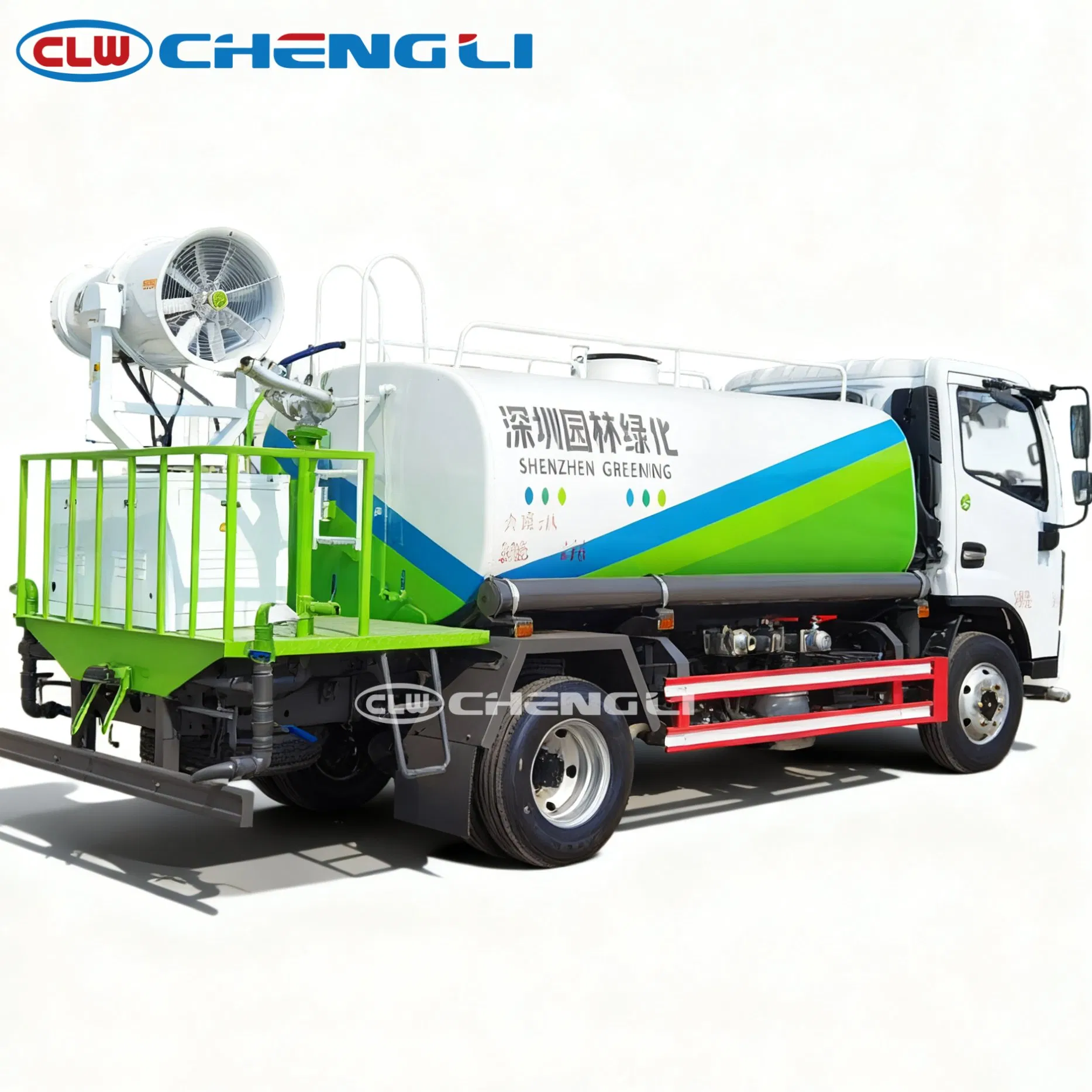

PTO, water pump, valves and pipework form the reference water-working system. The photographs show spray equipment on the 5,000L configuration. Specify the spray arrangement and water-transfer task so the selected pump and outlets can be included in the equipment schedule.
CONFIGURE THE WORKING EQUIPMENT
Configuration
Fleet comparison
At 5,000L nominal water volume, this body stores 4,000L less than the larger water truck. Evaluate it where spray sections are short and a nearby refill point supports frequent returns. Compare daily water demand with the chosen spray pattern rather than selecting the larger body automatically.
Vehicle layout
The reference uses a two-axle 4×2 layout and a 3,308 mm wheelbase. That wheelbase is shorter than the 3,800 mm reference on the 9,000L truck. Request the complete outline drawing when comparing access to construction entrances or landscaped work sections.
THE DATASHEETProduct specificationsExpand all groupsCollapse specifications
Dimensions and equipment describe the reference configuration. The final quotation identifies the supplied chassis, body and working equipment.
Model & dimensions
| Reference model | CLW5070GPSD6 |
|---|
Chassis & powertrain
| Fuel | Diesel |
|---|---|
| Transmission | Manual |
| Wheelbase | 3308 mm |
Body & capacity
| Nominal body volume | 5,000 L |
|---|
Working system
| Working equipment | PTO, water pump, valves and pipework |
|---|
BEFORE YOUR ENQUIRY
Buyer questions
How does 5,000L change the refill comparison?
It stores 4,000L less nominal water than the 9,000L reference. Compare the spray sections between refills and the distance back to the filling point.
Which wheelbase belongs to CLW5070GPSD6?
The reference wheelbase is 3,308 mm on a 4×2 layout. Use the complete vehicle drawing to assess access rather than deriving overall length from wheelbase alone.
What should I specify for the spray equipment?
State the spray pattern and whether water transfer is also required on the 5,000L assignment. Discuss the pump and outlet arrangement shown for the configuration you want quoted.
