Vacuum and sewage collection
6×4 Vacuum Truck

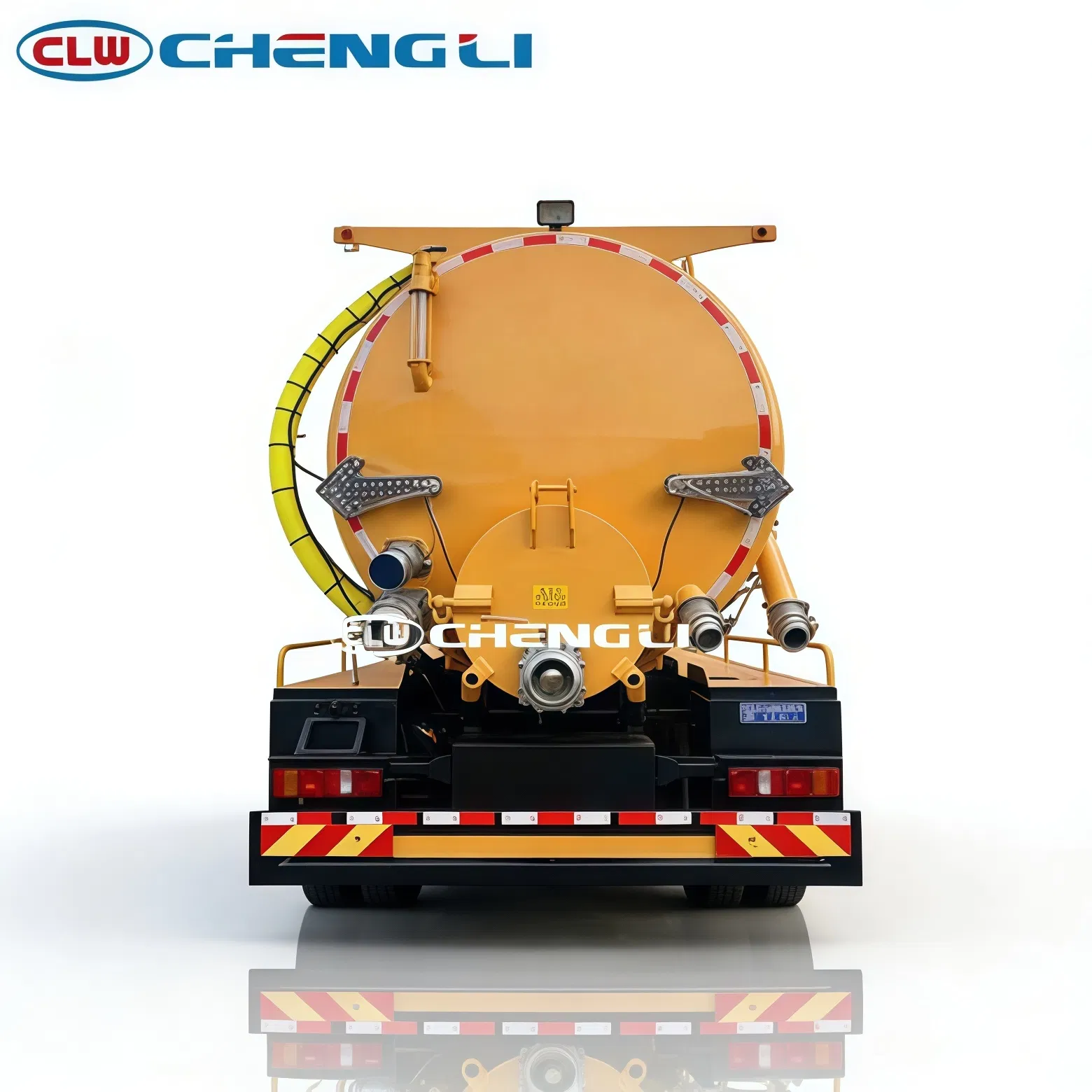

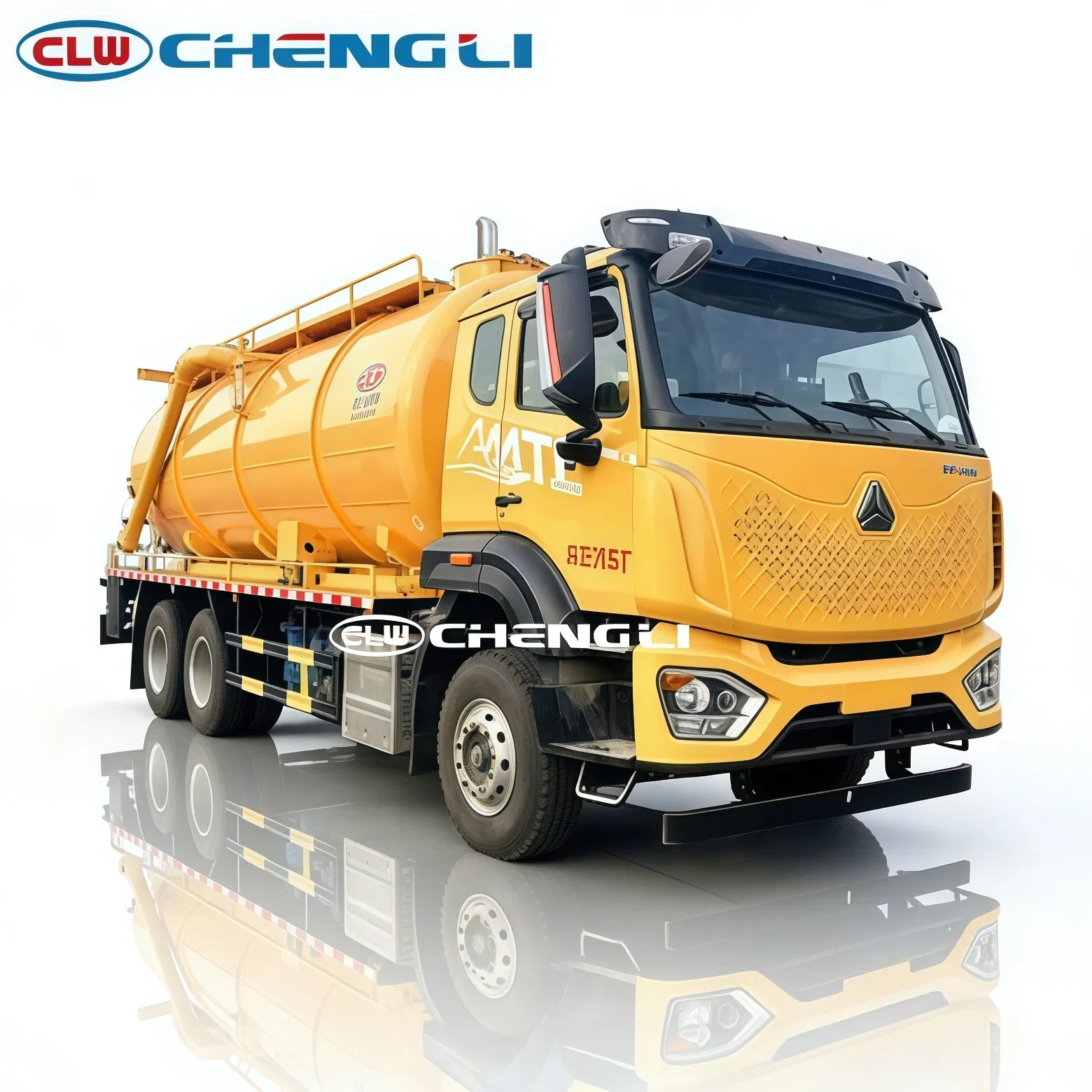

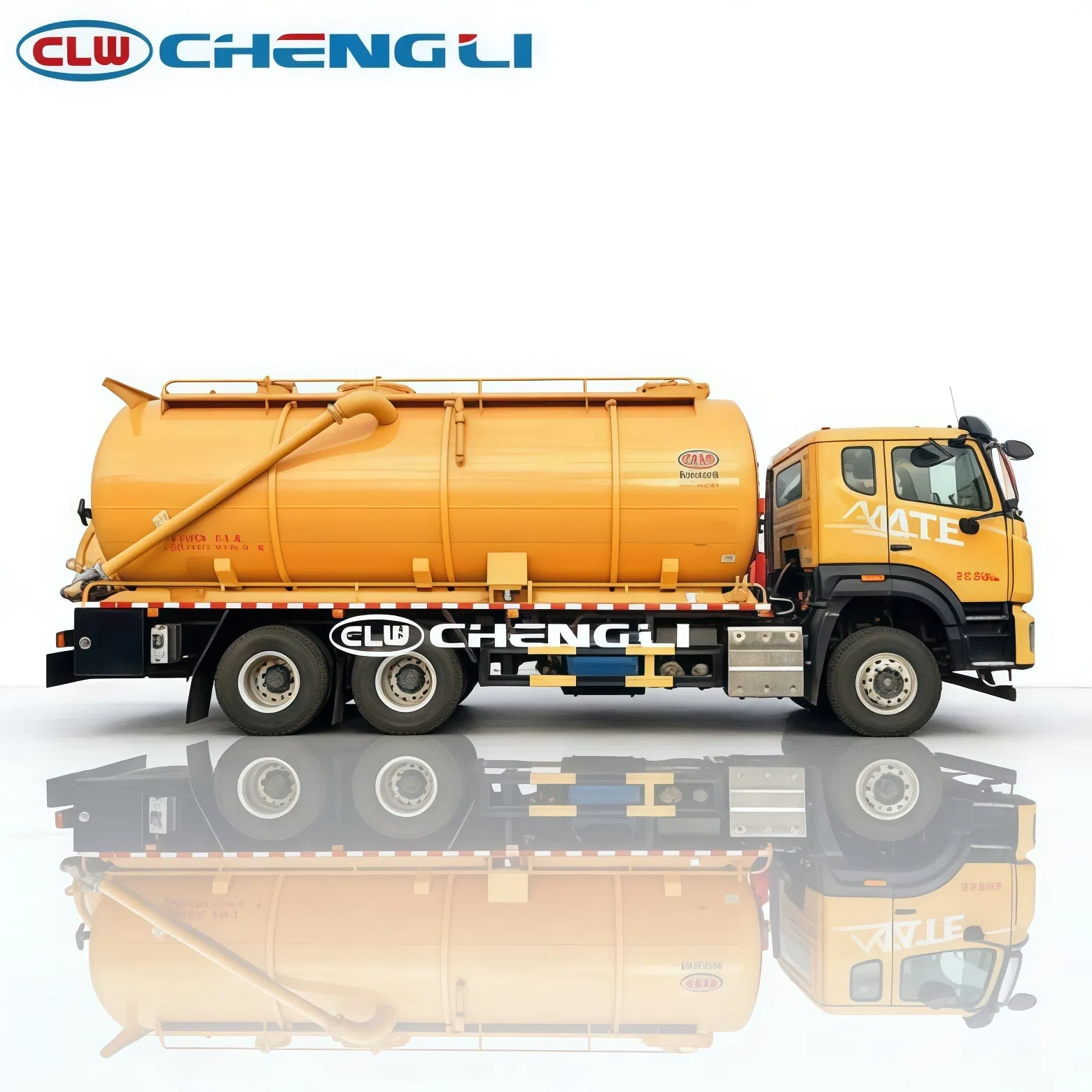

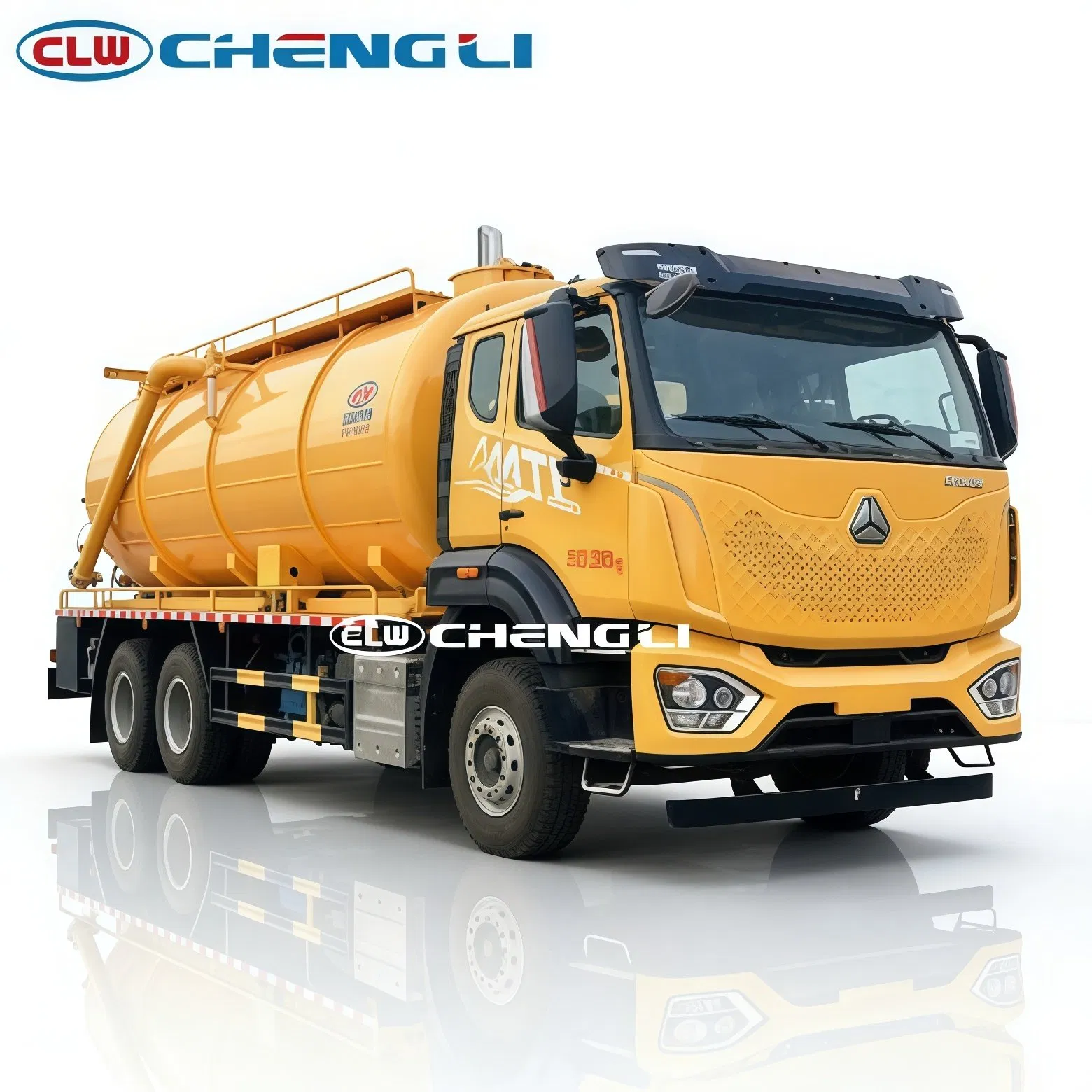

A three-axle HOWO vacuum truck for assessing larger collection assignments and the space needed by a 10,550 mm vehicle.
- Drive layout
- 6×4
THE APPLICATION
6×4 Vacuum Truck
The HOWO chassis has a 25,000 kg reference gross vehicle weight and a Q235 carbon-steel tank. Specify the tank volume required for your larger assignment in the equipment request. Choose the body and pump package alongside the three-axle chassis rather than extrapolating from the smaller tanker.
CONFIGURE THE WORKING EQUIPMENT
Configuration
Fleet comparison
This 6×4 configuration changes the fleet comparison from the two-axle tankers to a three-axle vehicle. Evaluate it for collection assignments where the operating load plan calls for a larger chassis. Compare its disposal-yard movement with the shorter 13,800L 4×2 tanker before choosing the vehicle layout.
Vehicle layout
The reference is 10,550 mm long, 2,550 mm wide and 3,900 mm high. Its height deserves attention at covered receiving points, while the length affects reversing and the unloading position. Ask for a maneuvering drawing showing the proposed approach to your disposal facility.
THE DATASHEETProduct specificationsExpand all groupsCollapse specifications
Dimensions and equipment describe the reference configuration. The final quotation identifies the supplied chassis, body and working equipment.
Model & dimensions
| Chassis brand | HOWO |
|---|---|
| Length × width × height | 10550 × 2550 × 3900 mm |
| Gross vehicle weight | 25,000 kg |
Chassis & powertrain
| Fuel | Diesel |
|---|---|
| Transmission | Manual |
Body & capacity
| Tank / body material | Q235 carbon steel |
|---|
Working system
| Tank monitoring / protection | Pressure gauge, sight glass and anti-overflow valve |
|---|
BEFORE YOUR ENQUIRY
Buyer questions
Why consider three axles for this vacuum assignment?
The reference moves to a 25,000 kg HOWO 6×4 chassis. Compare the complete load plan and the disposal-site layout with the smaller two-axle vehicles.
Which access measurement stands out on this truck?
The reference height is 3,900 mm and length is 10,550 mm. Review overhead clearance and reversing space at the receiving facility for this larger vehicle.
How should its tank be specified?
State the nominal tank volume needed for the larger collection assignment. The proposed tank and pump package should be matched to this three-axle chassis in the equipment schedule.
