Street and industrial-route cleaning

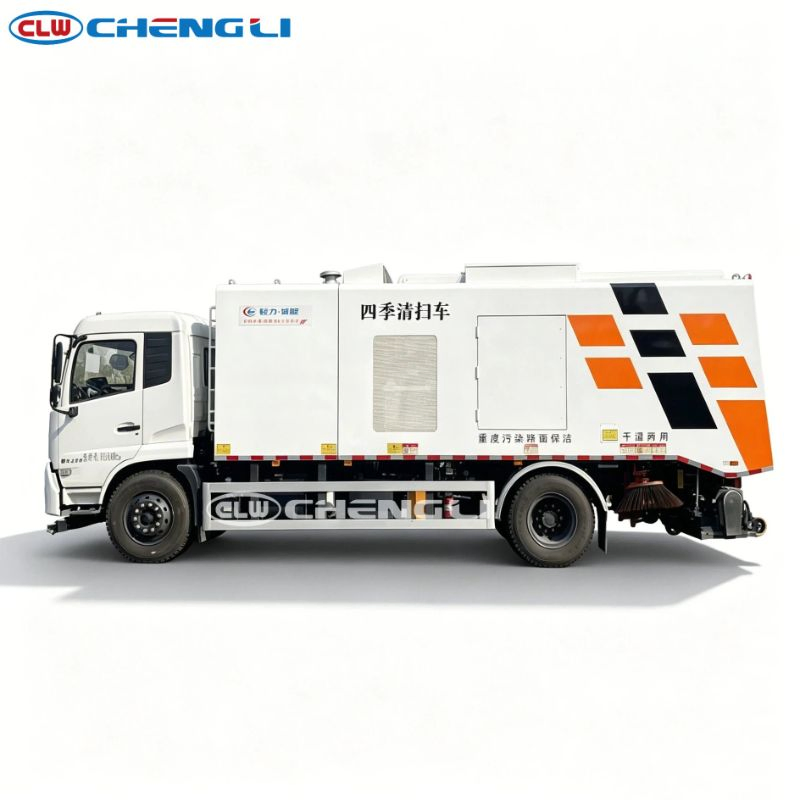

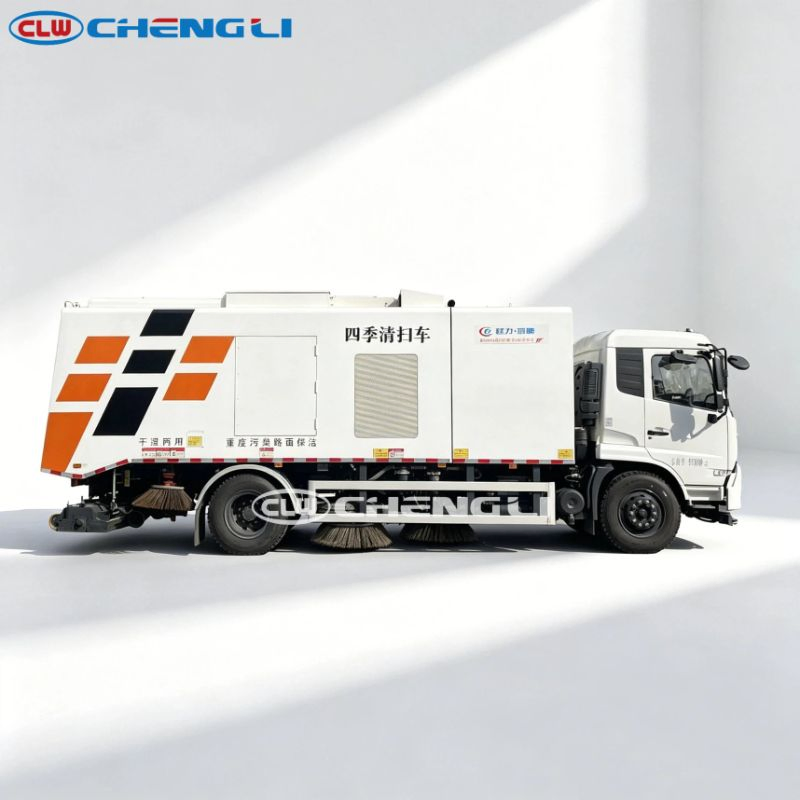

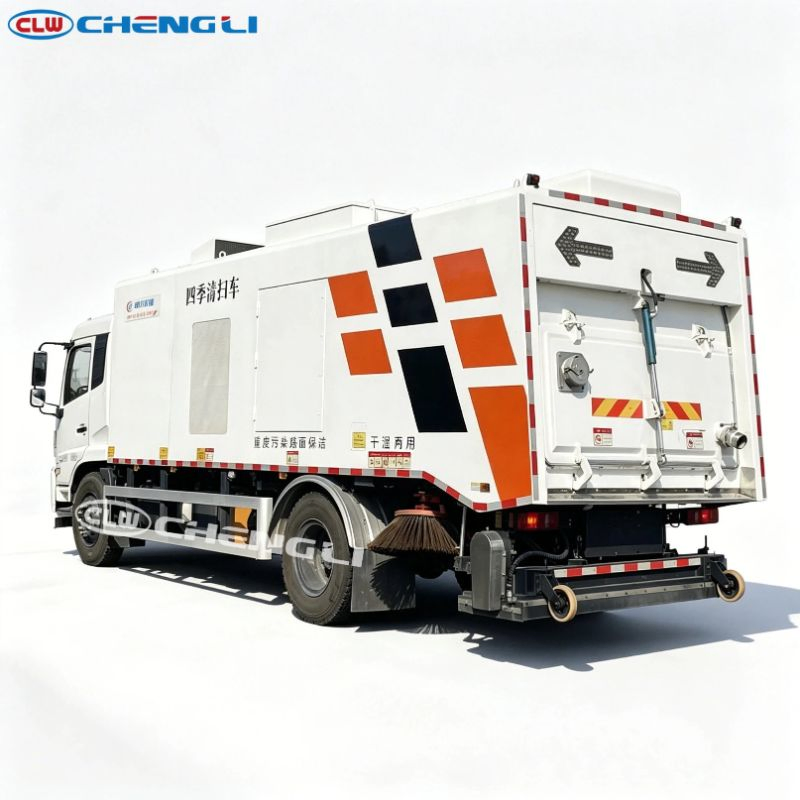

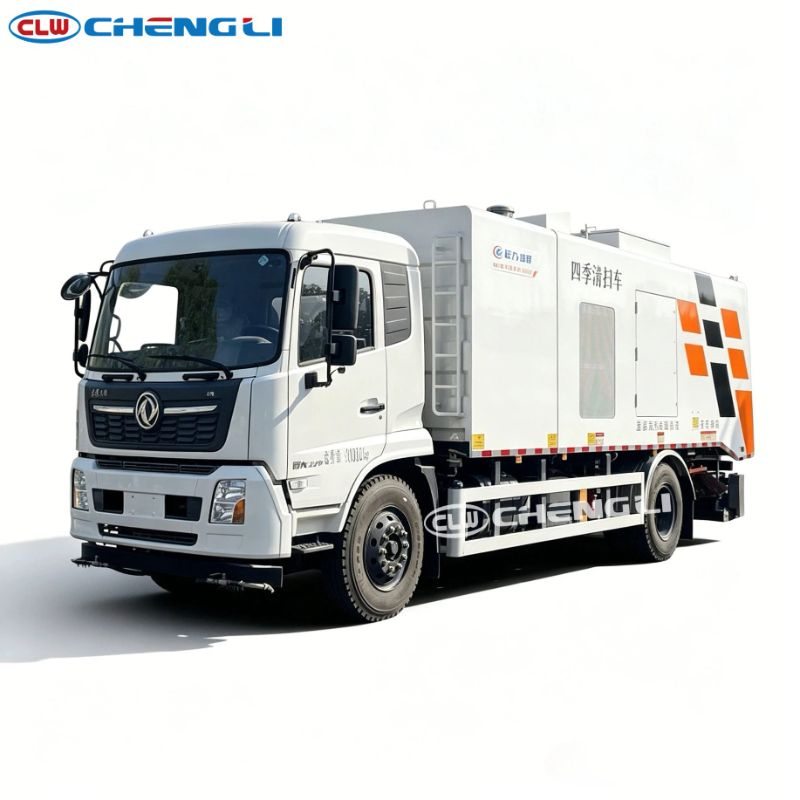

Dry & Wet Vacuum Road Sweeper Truck
A dry-and-wet road sweeper truck with an 11,000L dust compartment, 6,500L water tank and 12 filter cartridges.
- Reference model
- CLW5188
THE APPLICATION
Dry & Wet Vacuum Road Sweeper Truck
The Dongfeng reference measures 9,260 × 2,550 × 3,370 mm, with a 5,000 mm wheelbase and 18,000 kg gross vehicle weight. Its outline is longer and higher than the 8,000 mm water-assisted sweeper. Compare unloading and service-yard positions for that larger body.
CONFIGURE THE WORKING EQUIPMENT
Configuration
Fleet comparison
The 11,000L dust compartment is larger than the 7,000L hopper in the water-assisted sweeper reference. Evaluate that storage difference for routes where debris handling drives the emptying schedule. The 6,500L water tank gives a separate refill comparison from the 9,000L water-assisted model.
Vehicle layout
Twelve filter cartridges distinguish this working system. Plan access to the filtration equipment and discuss its service routine for the debris encountered on your routes. The dry-and-wet modes should be assessed against the actual cleaning task rather than assumed to suit every dust type.
THE DATASHEETProduct specificationsExpand all groupsCollapse specifications
Dimensions and equipment describe the reference configuration. The final quotation identifies the supplied chassis, body and working equipment.
Model & dimensions
| Reference model | CLW5188 |
|---|---|
| Chassis brand | Dongfeng |
| Length × width × height | 9260 × 2550 × 3370 mm |
| Gross vehicle weight | 18,000 kg |
Chassis & powertrain
| Fuel | Diesel |
|---|---|
| Transmission | Manual |
| Wheelbase | 5000 mm |
Body & capacity
| Water tank | 6500 L |
|---|---|
| Hopper / dust compartment | 11000 L |
Working system
| Filter cartridges | 12 |
|---|---|
| Cleaning mode | Dry and wet |
BEFORE YOUR ENQUIRY
Buyer questions
What is the main storage difference from the 7,000L sweeper?
This reference has an 11,000L dust compartment but a smaller 6,500L water tank. Compare the resulting emptying and refill pattern with the debris and water use on your route.
What does the 12-cartridge system mean for selection?
It identifies the reference filtration arrangement. Discuss cartridge access and the maintenance routine for the materials collected on your intended cleaning assignment.
How large is the dry-and-wet reference vehicle?
Its dimensions are 9,260 × 2,550 × 3,370 mm and the wheelbase is 5,000 mm. Use that outline when comparing the service yard and body-emptying position.
YOUR NEXT CONFIGURATION
Discuss your configuration
Request an itemized quote for the dry & wet vacuum road sweeper truck, its selected chassis and cleaning equipment and working-power arrangement.
Request a quotation
